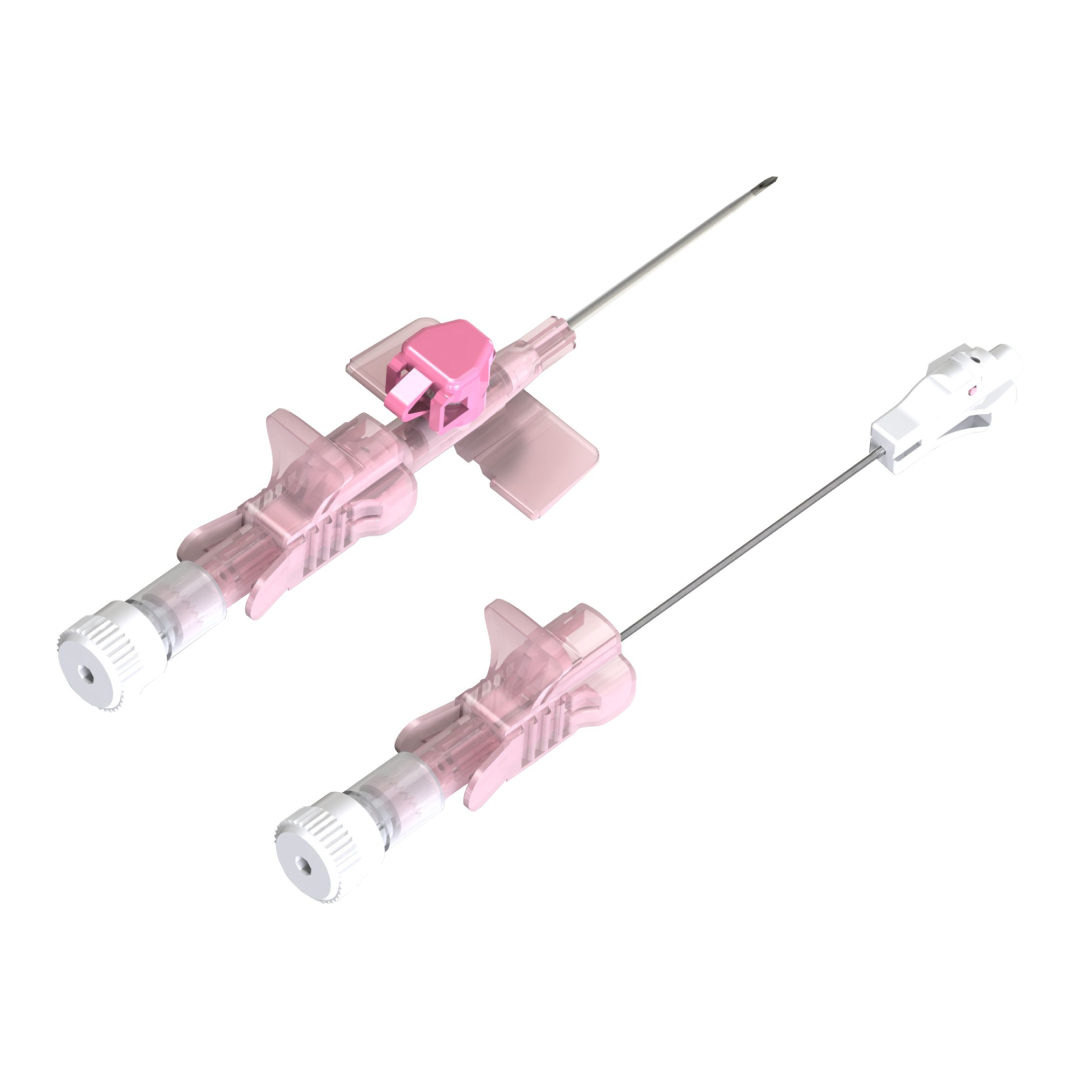

I.V.CANNULA WITH INJECTION PORT AND WINGS

TECHNICAL FEATURES:

  • Safety device for complete protection from needle injury.
  • Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
  • Transparent flashback chamber for conformation of vein penetration.
  • Specially designed double-hinged cap that incorporates a recessed plug with a protective skirt to prevent contamination when the valve is not being used.
  • Gauge wise complete body and needle hub are colored for easy identification.
  • Master carton dimension: 52×32×18 cm
  • Packing: 100/1000pcs per inner/Master Carton

ALSO VARIANTS AVAILABLE IN:

  • PTFE/FEP/PUR/TPU Catheter
  • With radiopaque lines/ Without radiopaque lines
  • Hydrophobic filter
  • Medical grade paper/ Tyvek paper
  • Different catheter length (14G-26G)
  • Broad blister packing.
  • “Intraveno Safe”.

Description

Safety I.V. Cannula with injection port & wings has been designed an innovative safety feature which eliminates the risk of accidental needle injuries to the healthcare provider.

Additional information

Orange 14G

Ext. Dia. mm 2.1
Catheter Lenght mm 45
Flow Rate mi./min 300

Grey 16G

Ext. Dia. mm 1.7
Catheter Lenght mm 45
Flow Rate mi./min 200

White 17G

Ext. Dia. mm 1.5
Catheter Lenght mm 45
Flow Rate mi./min 140

Green 18G

Ext. Dia. mm 1.3
Catheter Lenght mm 45
Flow Rate mi./min 95

Pink 20G

Ext. Dia. mm 1.1
Catheter Lenght mm 32
Flow Rate mi./min 62

Blue 22G

Ext. Dia. mm 0.9
Catheter Lenght mm 25
Flow Rate mi./min 33

Yellow 24G

Ext. Dia. mm 0.7
Catheter Lenght mm 19
Flow Rate mi./min 20

Voilet 26G

Ext. Dia. mm 0.6
Catheter Lenght mm 19
Flow Rate mi./min 15
