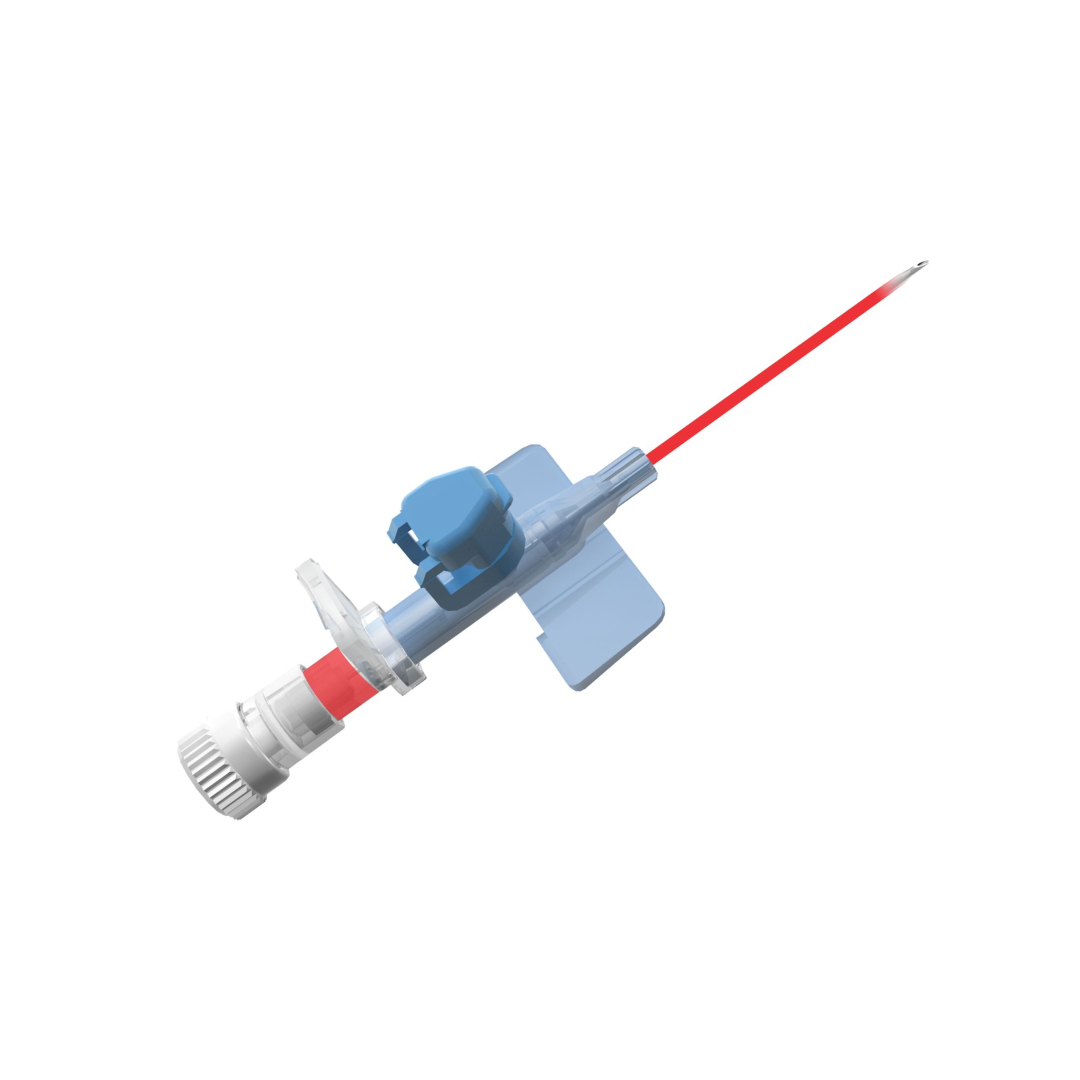

IV CANNULA WITH INJECTION PORT AND WINGS WITH INSTANT FLASHBACK CHAMBER

TECHNICAL FEATURES:

  • Specially designed beveled back cut needle offers lower penetration force which is less painful to the patient.
  • Injection port with one way silicone injection valve for intermittent medication.
  • Instant flashback chamber for conformation of vein penetration.
  • Specially made up of European catheter and Japanese needles, offer less penetration force.
  • Specially designed Flip flop cap that incorporates a recessed plug with a protective skirt to prevent contamination when the valve isn’t getting used.
    Flexible wings for easy fixation.
  • Master carton dimension: 69.5×32×17.5 cm
  • Packing: 100/1000pcs per inner/Master Carton

ALSO VARIANTS AVAILABLE IN:

  • FEP/PUR/TPU Catheter
  • With radiopaque lines/ Without radiopaque lines
  • Medical grade paper/ Tyvek paper
  • Different catheter length (14G-26G)
  • Broad hard blister packing

Description

I.V. Cannula having flip-top injection port & wings with exquisite colored body and having instant flashback chamber has been designed to supply additional medication or fluids.

Additional information

Orange 14G

Ext. Dia. mm 2.1
Catheter Lenght mm 45
Flow Rate mi./min 300
Grey 16G

Ext. Dia. mm 1.7
Catheter Lenght mm 45
Flow Rate mi./min 200
White 17G

Ext. Dia. mm 1.5
Catheter Lenght mm 45
Flow Rate mi./min 140
Green 18G

Ext. Dia. mm 1.3
Catheter Lenght mm 45
Flow Rate mi./min 95
Pink 20G

Ext. Dia. mm 1.1
Catheter Lenght mm 32
Flow Rate mi./min 62
Blue 22G

Ext. Dia. mm 0.9
Catheter Lenght mm 25
Flow Rate mi./min 33
Yellow 24G

Ext. Dia. mm 0.7
Catheter Lenght mm 19
Flow Rate mi./min 20
Voilet 26G

Ext. Dia. mm 0.6
Catheter Lenght mm 19
Flow Rate mi./min 15
